簡介：哈里伯頓近期發布兩款針對復雜油藏和深水油氣開發的新產品，分別為GEM元素分析工具和GeoTap IDS 流體取樣辨別技術。兩者均可為用戶提供復雜地層評估，對鉆井作業做出適時調整。哈利伯頓發布這兩項產品，表示其在金融危機背景下繼續投資技術研發，永做行業創新領袖的決心。
Halliburton recently unveiled two technologies targeted for complex reservoirs and deepwater assets. The GEM tool for elemental analysis and GeoTap IDS sensor for fluid sampling and identification both promise users more comprehensive formation evaluation to make real-time changes to their drilling operations.
The technologies were unveiled as part of Halliburton’s tour of its North Belt campus in Houston, which houses some of the laboratories and manufacturing facilities where Halliburton scientists and engineers develop and test new technologies aimed at drilling and formation evaluation.

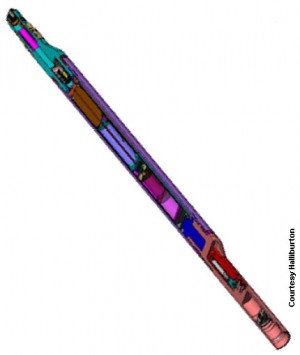

GEM Elemental Analysis tool
“Accurate reservoir and production estimates are difficult to achieve when formations are heterogeneously complex, such as in carbonate reservoirs and shale,” said Jerry Truax, Halliburton technology fellow for Petrophysics. “Elemental analysis provides valuable information for more accurate reserves estimates, better completion designs, and an overall improved understanding of the asset.”
Halliburton’s GEM Elemental Analysis Tool promises quick and precise evaluations of complex mineralogies using a combination of proven interpretation processes and integrated petrophysical analysis. The tool is a neutron-induced capture gamma ray spectroscopy logging system designed to derive elemental contributions contained within the entire measured gamma ray energy spectrum. The system can measure elemental yields that are important for mineralogical evaluations in open holes such that the user can accurately assess the reservoir and complete the well.
The GEM tool reportedly has a unique design and metallurgy compared to other wireline logging tools, which minimizes any signals from within the borehole or from the tool itself. In addition, the chemical source employed affords wider applicability and cost savings because the tool is shorter, more durable, and has simpler usage requirements.
The detector is housed in a flask with a eutectic heat sink which allows extended operation at downhole conditions. “We have run some laboratory trials that indicate that the GEM tool can operate continuously for 24 hours at bottomhole temperatures of 350°F,” Truax said.
The tool’s software also provides onsite or remote visualization of the elemental data quickly and accurately, with robust post-processing solutions. “The result is the most sensitive device on the market to accurately quantify important elements such as aluminum for shales and magnesium for carbonates,” said Truax.
More information can be found at Halliburton’s GEM website.

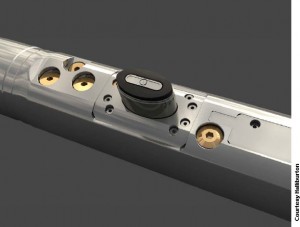

GeoTap IDS
Halliburton’s GeoTap IDS is a formation testing technology that provides fluid sampling and identification on logging-while-drilling (LWD) devices. According to the company, this means of deployment represents an industry breakthrough, as previous formation fluid sampling tools have been available only via wireline. Because the GeoTap IDS sensor?which is built on the GeoTap formation pressure tester platform?is deployed via LWD, it allows for downhole capture, identification, and surface recovery of representative fluid samples while also eliminating the time and cost of wireline sampling.
“By employing the GeoTap IDS, we estimate that an operator can save a total of USD2.2 million on their formation testing operation, based on a rate of USD250,000 per day,” said Jim Wilson, principal global champion LWD/MWD for Halliburton.
Other benefits include:
“We feel that this technology is ideally suited for highly deviated wells, and we plan to prove this with our first field tests that will take place later this year in the US Gulf of Mexico,” Wilson said.
To learn more, visit Halliburton’s GeoTap IDS website.
Halliburton’s tour and introduction of these technologies was designed to show its commitment to continued technology investment in spite of the current economic downturn in the industry. “Halliburton is a leading innovator, and we will continue on the path of continuous investment in the right formation evaluation technology that will reduce uncertainty and provide better real-time understanding of deeply buried, deepwater reservoirs,” said Tim Probert, Halliburton’s division president of drilling and evaluation.
楊寶劍 是振威（全球）石油網的高級技術編輯，在石油技術資訊行業有八年的學識和經驗。他源源不斷地提供石油行業全球最新的技術創新、研發成果、現場應用情況等信息。如果你對該項新技術有任何的疑問，或者對“新技術新產品”未來的內容有任何問題或建議，請聯系楊寶劍編輯 +86 10-58236512 Email：allenyo@zhenweiexpo.com 歡迎與行業互動！
